DESCRIPTION:

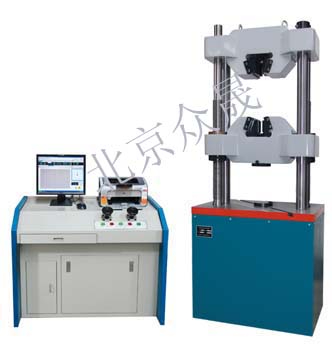

Microcomputer screen display hydraulic universal testing machine WEW-100B
Model: WEW-100B
I. Performance Description:
This testing machine is a downward-mounted hydraulic universal testing machine, which is mainly used for tensile, compression, bending, shear and other tests of metal materials and non-metallic materials such as cement, concrete, plastics, etc. It can be used to test the mechanical properties of steel strand, steel wire rope, chain, welding tape and components. Adding accessories, it can complete the mechanical property test of steel strand, steel wire rope, chain, welding rod, tape and components. Widely used in machinery, metallurgy, transportation, construction, building materials, colleges and universities, quality inspection and other industries and departments. Reliable performance, economical and practical, is the ideal testing machine for material testing in production and engineering.
Microcomputer screen display hydraulic universal testing machine WEW-100B
Model: WEW-100B
I. Performance Description:
This testing machine is a downward-mounted hydraulic universal testing machine, which is mainly used for tensile, compression, bending, shear and other tests of metal materials and non-metallic materials such as cement, concrete, plastics, etc. It can be used to test the mechanical properties of steel strand, steel wire rope, chain, welding tape and components. Adding accessories, it can complete the mechanical property test of steel strand, steel wire rope, chain, welding rod, tape and components. Widely used in machinery, metallurgy, transportation, construction, building materials, colleges and universities, quality inspection and other industries and departments. Reliable performance, economical and practical, is the ideal testing machine for material testing in production and engineering.
This testing machine according to the national GB/T3159-2008 "hydraulic universal testing machine" design and manufacture. It adopts load cell to measure the force, electronic induced meter to test the tensile deformation, and computer to process the operation data, with the functions of displaying and storing the test data on the screen, plotting and analyzing the curves, and printing the results.
Second, the technical indicators:
1、Maximum test force: 100 kN
2、the accuracy of the test machine: 1 level
3、Maximum tensile space: 520mm (including piston stroke)
4、Maximum compression space: 420mm
5、Flat specimen clamping diameter: 0-15mm
6、round specimen clamping diameter: Φ4-20mm
7、Diameter of platen: Φ120mm
8、the distance between the two columns: 460mm
9、bending support roller spacing: 30-400mm
10、Working piston stroke: 150mm
11、Maximum permissible relative error of indication value: ± 1%
12、Clamping mode: hydraulic clamping
13、oil pump motor power: 2.2KW
14、beam moving motor power: 0.37KW
15、host size: 730 × 570 × 1845 (mm)
16、Size of oil source: 1020×620×810(mm)
17、Weight: 2000 (kg)
Third, the main accessories configuration:
1, round specimen jaws (Ф4 ~ Ф20) 2 payments
2, flat specimen jaws (0 ~ 15) 1 payment
3, compression appliance (upper and lower pressure plate, spherical seat plate) 1 set
4, bending test attachment 1 set
5, ground nut screws 4
6, a set of measurement and control system, including: Lenovo computer 1, HP laser printer 1, load cell 1 only
7, electronic extensometer 1
8, special measurement and control software (installed in the microcomputer) 1 set
